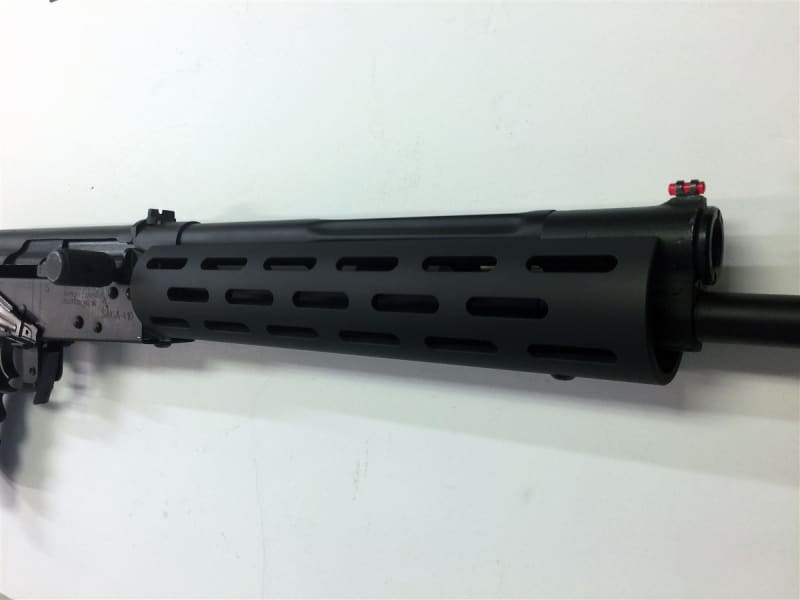

AR Style Vented Aluminum Forearm for the Saiga 410.
Gives your Saiga the same look and feel as your AR's.
1 Piece design machined from sold billet aluminum.
Made in the USA and counts for 1 922r compliant part.
Weighs9oz, Length 10", OD 2"..
Milspec flat black hard coat anodized for the most durable finish.
Optional Rail Sets (sold separately) can be secured in numerous positions to attach any lights, lasers and vertical grips.
Installation instructions:
-Makes sure the firearm is unloaded.
-Remove gas block screw and pull the factory forearm towards the end of the barrel a few inches and then pull straight down.
-Slide the new forearm down the barrel and insert the back tab into the receiver.
-Insert the 10-32 Screw into the Receiver hole and hand tighten
-Insert the M5 screw through the forearm and then slide the 2 or 3 leveling spacers onto the screw on the inside of the forearm, between the Handguard and the Gas Block.
(Some Saiga's may only require 1 spacer depending on your gas block)
-Tighten both screws and secure using BLUE loctite.
-Note: install rail pieces first if you are using them.
|
|
|
Nice but, not Mlok.
Looks nice installed
